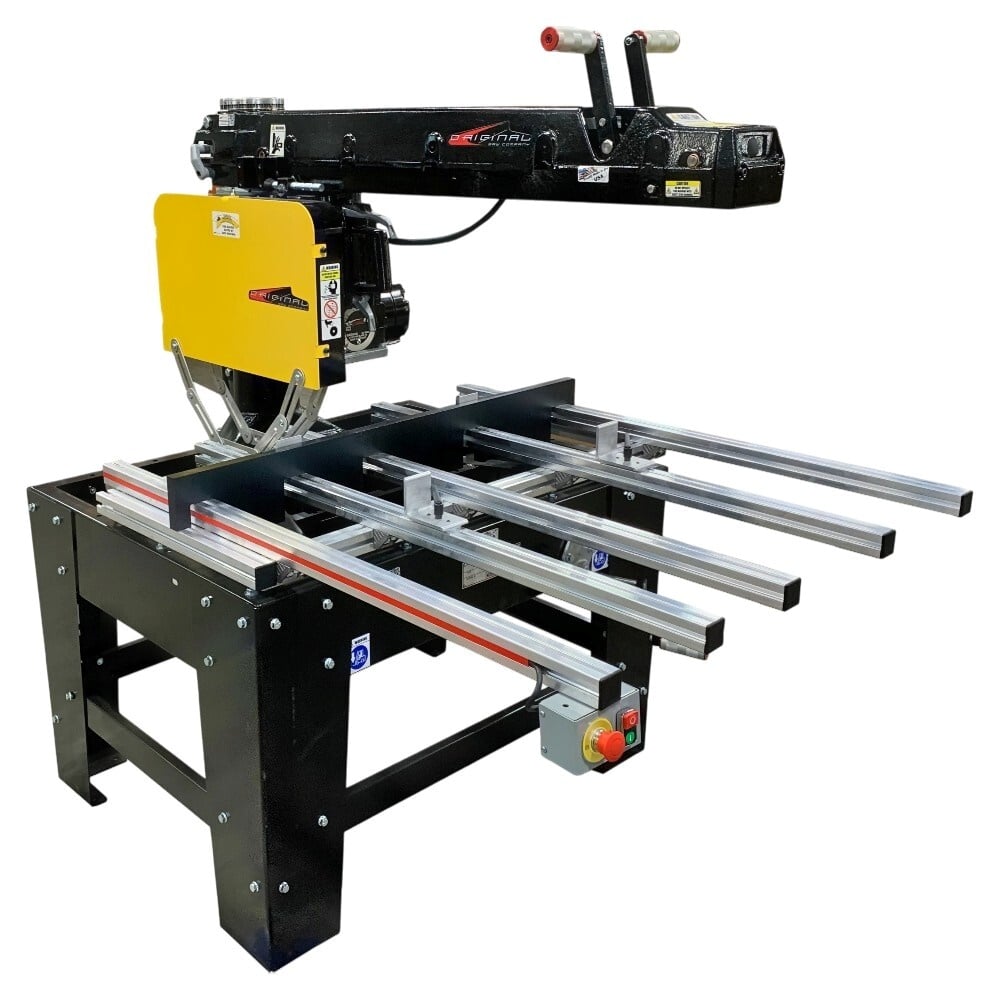

22.5″ Super Duty Metal Cutting Radial Arm Saw

Built for industrial metalworking, the 22.5″ Super Duty Metal Cutting Radial Arm Saw offers an 8″ maximum cutting depth and crosscut capacities of 17¾″ or 25¾″, depending on the model. It performs crosscuts, bevel cuts, miter cuts, and compound miter cuts.

Standard equipment includes a 7.5 HP three-phase TEFC motor, manual handcrank carriage feed, manual clamps, and a T-slot extruded aluminum table. Electronic Powered Cross Feed and pneumatic clamping systems are available as optional upgrades. Made in the USA.

Key Features

Heavy-Duty Industrial Build

Cast and ductile iron construction helps reduce vibration during cutting. Heavy-gauge, powder-coated steel legs and frame provide a stable platform for industrial use.

High-Performance Cutting Capabilities

Built for versatility in the workplace, this saw can crosscut, bevel, miter, and compound miter cut. Users can execute complex cuts with precision. With an 8″ depth of cut in a single pass, it efficiently handles thick materials, like extrusions, profiles, and heavy-duty metal components. The crosscut capacity of 17 3/4″ or 25 3/4″ (depending on the model) helps users to process larger materials efficiently and reduce the need for multiple passes.

Advanced Motor and Power Options

The 7.5 HP TEFC (Totally Enclosed Fan Cooled) motor delivers consistent power. It also protects against dust, debris, and external contaminants to ensure long-term performance. This machine runs on 3-phase power and is available in 208V, 230V, 460V, or 575V for compatibility with various industrial power setups. Integrating Variable Frequency Drive (VFD) Technology enhances performance by allowing a smoother, more controlled startup. The VFD also reduces mechanical stress and extends the life of the motor and blade.

Enhanced Safety and Usability

Safety is a top priority with the 22.5 inch Metal Cutting Radial Arm Saw. Its features protect operators during cutting tasks while maintaining efficiency.

• E-Stop: Quickly halts the saw’s operation in emergencies.
• Complete Blade Guards: Full upper and lower blade guards provide comprehensive protection.
• Automatic Blade Braking System: Stops the blade promptly after use for enhanced safety.
• Front Lower Elevation System: Located at the front of the saw frame, the easy-to-operate crank allows operators to quickly raise or lower the blade assembly to the desired height with minimal effort.
• The Manual Chain Crank Crossfeed and Adjustable Crosscut stop provide precise material positioning for increased accuracy and repeatability.

Customizable Work Surface

The saw’s work surface is designed for stability and versatility, with options to upgrade for specialized cutting requirements. Customizable table surfaces provide reliable performance across various materials and applications.

• Standard Table: The T-slot extruded aluminum table provides a durable, stable work surface supporting heavy materials. It includes secure clamping options to firmly hold materials during cutting operations.
• Optional Upgrades: Choose HDPE table inserts to create a smooth surface when cutting smaller pieces. For added safety and dust control, upgrade to a bolt-on enclosed table guard. This guard provides blade protection and a cleaner work environment.

Clamping Options

22.5 inch Metal Cutting Radial Arm Saws come equipped with standard manual clamps, which slide through the aluminum T-slots of the table. These clamps securely hold materials in place and provide precision and safety during cutting operations.

For enhanced efficiency, choose to upgrade with a Pneumatic Clamping System:

• Two-Front Pushing Pneumatic Clamping System: Designed for repetitive or high-volume cutting tasks, this system provides secure material holding with minimal operator effort and streamlines workflows.
• Four-Pneumatic Clamping System: Ideal for larger or irregularly shaped materials, this system has maximum stability by clamping from multiple points and providing consistent and reliable support during cutting.

Feed System Options

Choose standard manual handcrank operation or upgrade to Electronic Powered Cross Feed.

• Manual Hand Crank (Standard): Turn the crank to advance the saw carriage through the material. Reverse the crank to return the carriage to its home position. There is no automatic return.
• Semi-Automatic Operation (Upgrade): Electronic Powered Cross Feed advances the carriage through the material and automatically returns it to its home position.

See the Manual Handcrank in Action

Watch a demonstration of the carriage travel and manual return on a metal cutting radial arm saw.
