Pneumatic Clamping Systems

Pneumatic Clamping Systems are added to the saw table to secure material while cutting. This includes:

  • pneumatic clamping slider assembly
  • on/off selector switch
  • all required tubing (which is installed on the saw)

Pneumatic Clamping Systems require factory installation and need to be ordered at the same time as the saw.  Call customer service at (800) 733 – 4063 to order.

In stock

Loading...

Description

Pneumatic Clamping System Options

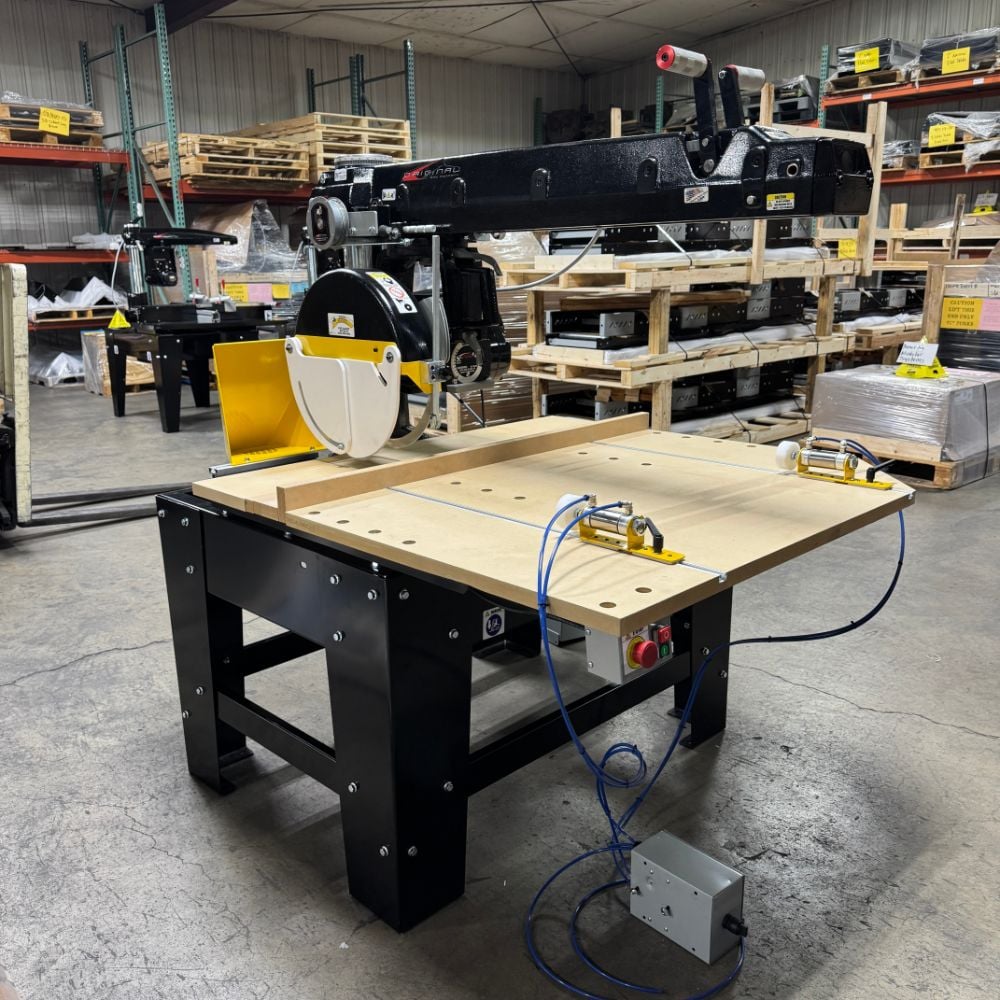

  • Two Front Pushing Clamps – This system holds material back against the fence.  The cylinders are mounted on adjustable slide carriages with a locking handle.  Adjust the clamping system to fit various material widths.  Two Front Pushing Clamps work effectively with squared material, such as dimensional lumber and aluminum or steel box tubing.
  • Two Over Center Clamps with Two Front Pushing Clamps – Combine two over center clamps with two front pushing clamps to make a four clamp system.  The four clamps work together to hold the material down against the table and back against the fence.  Timing is important.  Material is pushed square against the fence before the over center clamps push the material down against the table.  The four clamp system is ideal for irregularly shaped material.

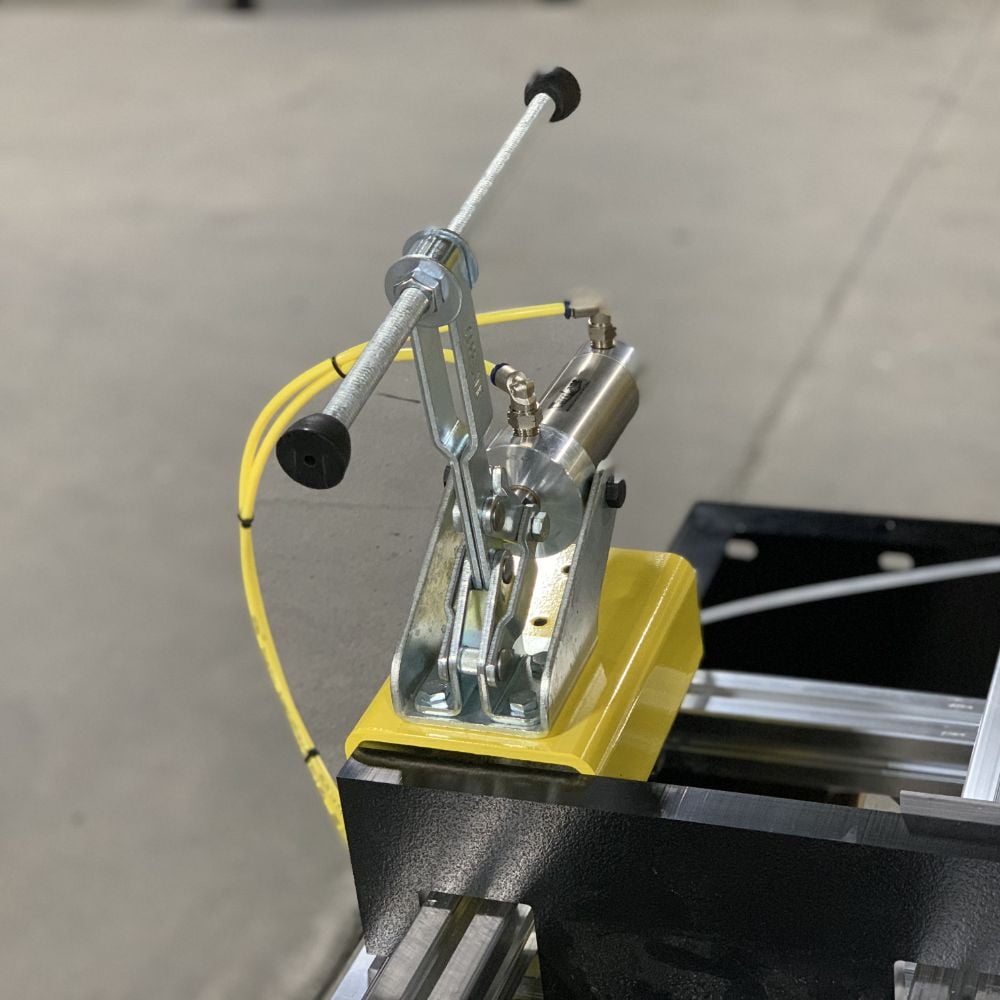

  • Overarm Clamps –  Take advantage of overarm clamps when cutting multiple pieces.  Two front pushing clamps square the material against the fence.  Then the overarm clamp with an attached bar comes down to secure the pieces.  This system has clamps on both sides of the blade.  Cut small pieces along the entire depth of the table when using overarm clamps.
  • Beam Saw Clamps – Outfit a Beam Saw with a specialized six clamp system.  Two pneumatic clamps push towards the fence and four pneumatic clamps push down on the material.

Additional information

Compatible with

14" Heavy Duty Radial Arm Saw, 14″ Manual Crosscut Power Saw (3 phase with 17 1/4″ crosscut), 14″ Manual Crosscut Power Saw (single phase with 17 1/4″ crosscut), 14″ Semi-Automatic Crosscut Power Saw (3 phase with 17 1/4″ crosscut), 14″ Semi-Automatic Crosscut Power Saw (single phase with 17 1/4″ crosscut), 16″ Beam Saw (3 phase with 64″ crosscut), 16″ Beam Saw (single phase with 64″ crosscut), 16″ Heavy Duty Radial Arm Saw, 16″ Manual Crosscut Power Saw (3 phase with 18″ crosscut), 16″ Metal Cutting Radial Arm Saw, 16″ Semi-Automatic Crosscut Power Saw (3 phase with 18″ crosscut), 16″ Super Duty Radial Arm Saw, 20″ Beam Saw (3 phase with 62″ crosscut), 20″ Manual Crosscut Power Saw (3 phase with 18″ crosscut), 20″ Metal Cutting Radial Arm Saw, 20″ Semi-Automatic Crosscut Power Saw (3 phase with 18″ crosscut), 20″ Super Duty Radial Arm Saw, 22.5″ Beam Saw (3 phase with 60″ crosscut), 22.5″ Metal Cutting Radial Arm Saw

REQUEST A QUOTE: Pneumatic Clamping Systems

Reviews

There are no reviews yet.

Be the first to review “Pneumatic Clamping Systems”

Your email address will not be published.

A Pneumatic Clamping System is a series of pneumatic cylinders that attach to a saw table and hold material in place during cutting.

  • Efficiency:  Clamp multiple pieces at a time and reduce operator fatigue.
  • Safety:  Pneumatic Clamping keeps hands away from the blade when cutting.
  • Customizable:  Choose two or four-cylinder systems to clamp material down against the table, back against the fence, or both.

A Pneumatic Clamping System is a specialized operation and requires factory installation.  Original Saw Company considers the following factors when recommending a Pneumatic Clamping System:

  • Material size
  • Material shape
  • Production process
  • Number of pieces cut simultaneously

Due to the complexity of this process, contact Original Saw Company for recommendations and to request a quote.

Original Saw’s Pneumatic Clamping System is a wood and metal cutting accessory.  It integrates with our Heavy Duty Series, Super Duty Wood Cutting SeriesSuper Duty Metal Cutting Series, and Beam Saws to allow for various cutting and clamping options.

Do You Need Test Cuts?

Are you unsure if this machine can cut your material?

Ask about sending in a material sample to Original Saw. We will cut your material on our shop saw and make a video. Afterwards, you can review the videoed test cuts and make informed decisions. Most importantly, we want you to feel comfortable with your solutions before your purchase.

Would you like to send us your material?

Email us at customerservice@originalsaw.com or call at (800) 733-4063 to start the process.
