22.5″ General Purpose Blade for Radial Arm Saws and Beam Saws

22.5″ General Purpose Blade for Radial Arm Saws and Beam Saws

$583.64

Features

22.5″ Wood Cutting Saw Blade

Select Options

In stock

Description

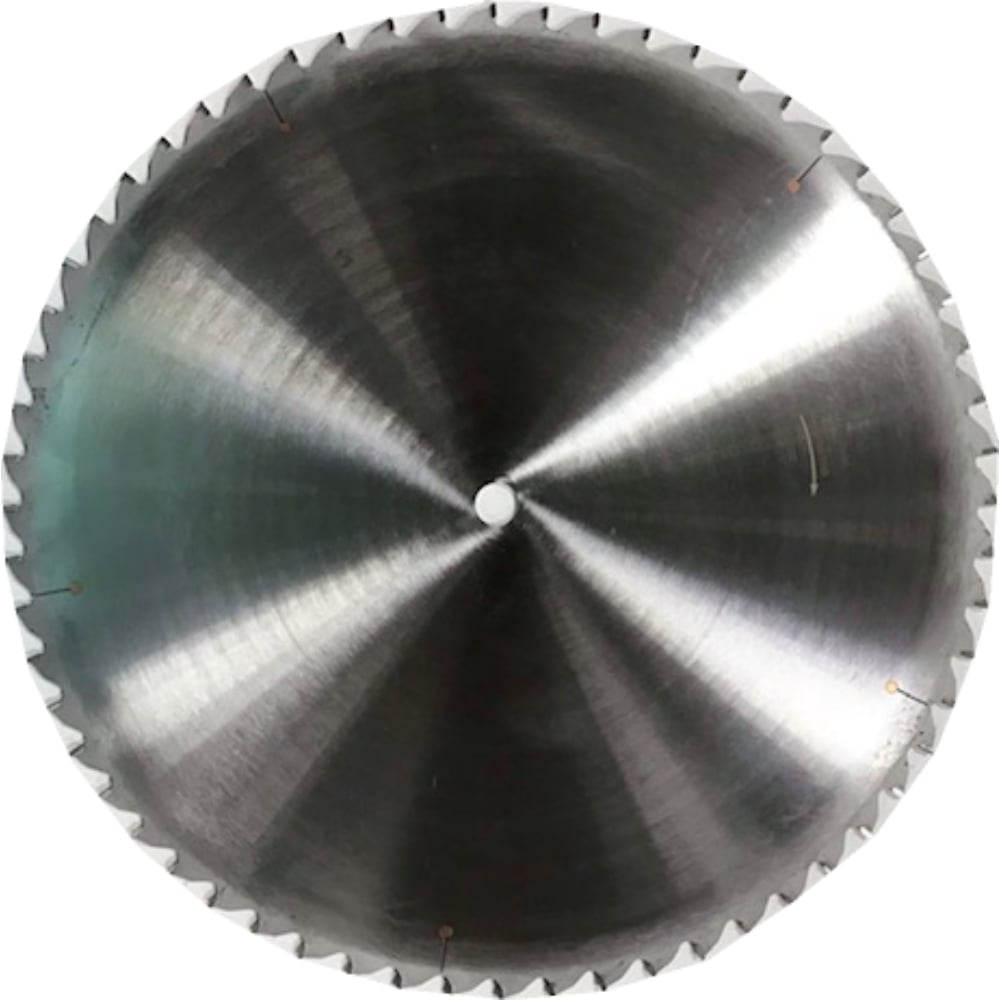

22.5″ General Purpose Blade for Radial Arm Saws and Beam Saws

The 22.5″ General Purpose Blade for Radial Arm and Beam Saws are designed for superior cutting results on Original Saw Company’s saws. Its negative tooth design reduces saw “grabbing,” creating a smoother and safer cutting experience. Ideal for cross-cutting hardwood, laminated material, MDF, plywood, and veneer, this blade easily handles various materials.

Key Features

  • Versatile Cutting Applications: Perfect for hardwood, laminates, MDF, plywood, and veneer.
  • Precision Design: Features 60 carbide-tipped teeth for durability and clean cuts, with a -5° hook angle to enhance control.
  • American-Made Quality: Proudly crafted in the USA, engineered for reliable performance and long-lasting durability.

Specifications for the 22.5″ General Purpose Blade for Radial Arm and Beam Saws

  • Blade Diameter: 22.5″
  • Tooth Count: 60
  • Bore Size: 1″
  • Hook Angle: -5 Degrees
  • Kerf: .200″
  • Grind: ATB (Alternate Top Bevel)

Enhance Your Equipment

A high-performance saw blade will provide consistent cutting results when making industrial cuts.

Specifications

Additional information

Weight 23 lbs
Dimensions 32 × 32 × 2 in
Machine Specs

Saw Blades are in stock items. They can be shipped within 1-2 business days after the order is placed.

Cuttable Material

,

Compatible with

22.5″ Beam Saw (3 phase with 60″ crosscut), 22.5″ Super Duty Radial Arm Saw

Product Width (Inches)

Product Height (Inches)

Saw Blade Shipping & Handling

Original Saw Company ships in-stock saw blades within 2-3 business days after an order is placed. Shipping times may vary based on destination and carrier availability. A tracking number will be provided once the order has shipped. Shipping costs are calculated at checkout and are non-refundable.

For any shipping inquiries, please contact Original Saw Company Customer Service at 800-733-4063 or customerservice@originalsaw.com.

What types of materials can a General Purpose Woodcutting Saw Blade handle?

A General Purpose Woodcutting Blade is designed to handle a wide range of wood materials. It can efficiently cut through softwoods, hardwoods, plywood, and MDF and provides a balance of speed and finish. For cutting specialized materials like laminates or metal, using a different blade is best to ensure safe, accurate cuts and achieve the best results.

What is a negative hook angle on a Saw Blade and when should I use one?

A negative hook angle on a saw blade means the blade’s teeth tilt slightly backward. This angle helps control the cutting action, especially on easily chip or splinter materials like laminates, plywood, or metals. Use a blade with a negative hook angle for cleaner cuts in these materials and more controlled cutting on radial arm saws.

How important is the number of teeth on a Saw Blade?

The number of teeth on a saw blade impacts the cut’s quality and speed. Blades with fewer teeth cut faster but can leave rougher edges, making them ideal for ripping through wood quickly. Blades with more teeth provide a finer, smoother cut, which is better for finishing work, such as crosscutting hardwood or cutting laminate surfaces.

What's the difference between general purpose and fine cutting blades?

General purpose blades are designed for versatility, handling a range of materials with decent speed and quality. They balance tooth count and design to suit both ripping and crosscutting tasks. Fine cutting blades have more teeth and specialized grinds to produce smooth, precise edges. This is especially important for finish carpentry or working with delicate materials. Choose a fine cutting blade when a high-quality finish is essential.

Saw Accessories

Saw Parts

Case Studies

Do You Need Test Cuts?

Are you unsure if this machine can cut your material?

Ask about sending in a material sample to Original Saw. We will cut your material on our shop saw and make a video. Afterwards, you can review the videoed test cuts and make informed decisions. Most importantly, we want you to feel comfortable with your solutions before your purchase.

Would you like to send us your material?

Email us at customerservice@originalsaw.com or call at (800) 733-4063 to start the process.
