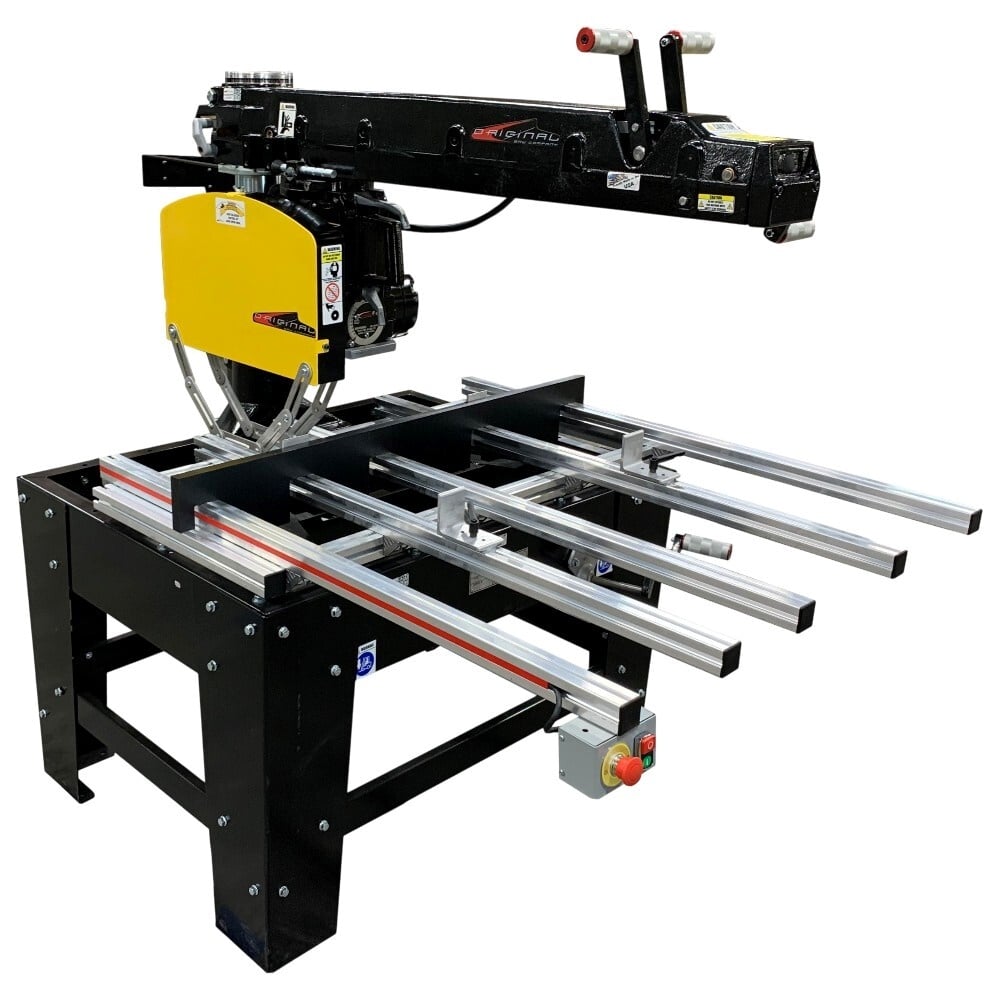

20″ Metal Cutting Radial Arm Saw

$12,861.48$13,480.99

  • 7.5 HP 3 phase TEFC (totally enclosed fan cooled) motor
  • 50/60 HZ
  • 208, 230, 460 or 575 volt motor
  • 7” depth of cut
  • Automatic blade braking system
  • Manual chain crank crossfeed
  • Manual hand crank for refined carriage control
  • Adjustable crosscut stop
  • Base column lock
  • E-Stop
  • Standard lower elevation on front of frame
  • T-Slot Extruded Metal Table
  • Magnetic starter with low voltage and overload protection
  • Complete upper and lower blade guards
  • Standard work table height 34 ½ ″
  • Made in USA

Frequently Bought Together

20" Metal Cutting Radial Arm Saw with an aluminum extrustion table. + + 20" Aluminum Crosscut Blade for Radial Arm Saws and Beam Saws
Price for all three: $13,865.53
Loading...

Description

20″ Metal Cutting Radial Arm Saws are the top saw in the metal industry.

The 20″ Metal Cutting Saw is capable of operating 2 to 3 shifts per day in an industrial setting with the versatility to:

  • crosscut
  • bevel cut
  • miter cut
  • compound miter cut

20″ Metal Cutting Radial Arm Saws can cut 7″ deep in a single pass and has a crosscut capacity of 23″ or 31″, depending on your chosen model. Weighing in at 850 pounds, this saw will withstand years of industrial cutting. In particular, use this saw to easily cut through fiberglass, aluminum, steel, bronze, brass, and plastics. Join Radial Arm Saws with both Original Saw Company’s Saw Extension Tables and Saw Measuring Systems to create a complete cutting solution.

We pride ourselves in manufacturing an American-made product.

From the motor to the heavy cast iron arm, the 20″ Metal Cutting Radial Arm Saw is a solid machine for years to come. Its merits include the following:

  • 20″ Metal Cutting Radial Arm Saws are made from cast and ductile iron and features vibration-free operation.
  • Heavy-gauge, powder-coated steel forms the legs and frame.
  • With a TEFC (totally enclosed fan-cooled) motor and internal automatic brake, this radial arm saw has the best cut quality in its class.
  • In addition, this Radial Arm Saw has a T-slot aluminum extruded table. The aluminum extrusions house the manual clamps. The heavy duty table provides strength and support for bulky cutting.

Do you have the capability to run 3 phase power at your location? If so, this is the model you want. 3 phase power creates a smooth motor start-up. Most importantly, with no relays or capacitors inside the motor, there tends to be less maintenance and longer service life.

Recent updates to the 20″ Metal Cutting Saw include the following:

  • A start/stop button on the left front edge of the table supplies additional accessibility.
  • The E-stop became a standard feature. An E-Stop is a safety mechanism to shut off machinery in an emergency. This switch stops the operation of the Radial Arm Saw. Most importantly, it shuts off all potential hazards outside of the saw’s power enclosure.
  • Redesigned extended elevating cranks provide easy elevation.
  • Lastly, multiple table options are available.

Additional information

Weight 1000 lbs
Dimensions 72 × 52 × 48 in
Motor

7.5 hp 3 phase TEFC (totally enclosed, fan cooled) motor

Product Length (Inches)

,

Product Width (Inches)

Product Height (Inches)

Cuttable Material

, , , , , , ,

Max Crosscut

,

Max Depth Cut

Can do the following cuts

, , ,

Capable of Rip Cuts

Voltage Options

, , ,

Phases of Voltage Available

Pneumatic Clamping Ability?

Powered Feed Option?

Ordering & Shipping

Manufacturing of Radial Arm Saws happens after the customer orders. Machines are considered custom and are made voltage specific. If you are unsure about the power requirements of your location, please get in touch with an electrician.

Because some cutting applications are custom and specific, our team may contact you about your purchase. It is our priority to build a saw that fits our customers’ needs.

Radial Arm Saws are assembled and tested in our facility. After being test run, the saw is packaged and placed on a skid. The legs are attached to the skid. This makes setup and installation easy.

When the Radial Arm Saw is delivered, simply:

  1. Lift the machine
  2. Install the legs
  3. Wire in the mag starter
  4. Install the saw blade of your choice



These machines have provided affordable metal cutting in thousands of workshops and manufacturing companies throughout the world. Count on everyday repeatability and accuracy for years to come.

Reviews

There are no reviews yet.

Be the first to review “20″ Metal Cutting Radial Arm Saw”

Your email address will not be published. Required fields are marked *

Metal Cutting Radial Arm Saws can cut materials such as:

  • aluminum
  • steel
  • brass
  • bronze
  • plastics
  • fiberglass


This saw is perfect for cutting extrusions and profiles. They can make several kinds of cuts.

For example: The Metal Cutting Radial Arm Saw will crosscut, miter, bevel and do compound miter work, all within one saw.

The Metal Cutter holds several advantages over other saws in the industry.

  • It is able to cut large sized material.
  • It can also cut a large volume of pieces at one time.


Extrusion companies, sign manufacturers, aluminum window and door manufacturers, hollow metal door operations, metal decking manufacturers, metal roof manufacturers, fenestration industries and the glass and the glazing industry frequently use our radial arm saws.

Original Saw Company offers three types of operation for Radial Arm Saws.



  • Manual Operation – Standard Radial Arm Saws are powered by the operator.  The operator pulls the handle and the blade moves forward radially to make the cut.  Manual operation is a standard feature on all Contractor and Heavy Duty Series Radial Arm Saws.
  • Hand Crank Operation – Hand Cranks are used instead of Manual Operation for better carriage control.  This operation is ideal for cutting large timbers, metal cutting applications, and heavy dado work.  Hand Crank Operation is available on 22.5” Super Duty Radial Arm Saws and all Metal Cutting Radial Arm Saws.
  • Semi-Automatic Operation – Add an electronic powered cross feed to a Radial Arm Saw for semi-automatic operation.  Push the button on the front side of the Radial Arm Saw and the blade will cut through the material and automatically return to the home position.  This operation is currently available on all Super Duty Series models and Metal Cutting Radial Arm Saws.



Our team has years of cutting experience.  Contact us for recommendations about clamping, feeding material, and complete automatic sawing packages.

Blade Options for 20″ Metal Cutting Saw:

Saw Accessories

Saw Parts

Testimonials

Check Out Our Product Video

Do You Need Test Cuts?

Are you unsure if this machine can cut your material?

Ask about sending in a material sample to Original Saw. We will cut your material on our shop saw and make a video. Afterwards, you can review the videoed test cuts and make informed decisions. Most importantly, we want you to feel comfortable with your solutions before your purchase.

Would you like to send us your material?

Email us at customerservice@originalsaw.com or call at (800) 733-4063 to start the process.

Compatible Super Duty Metal Saw Accessories

A Super Duty Metal Cutting Saw is much more than a radial arm saw. When paired with optional equipment, it is a platform for a wide variety of cut-off work.
