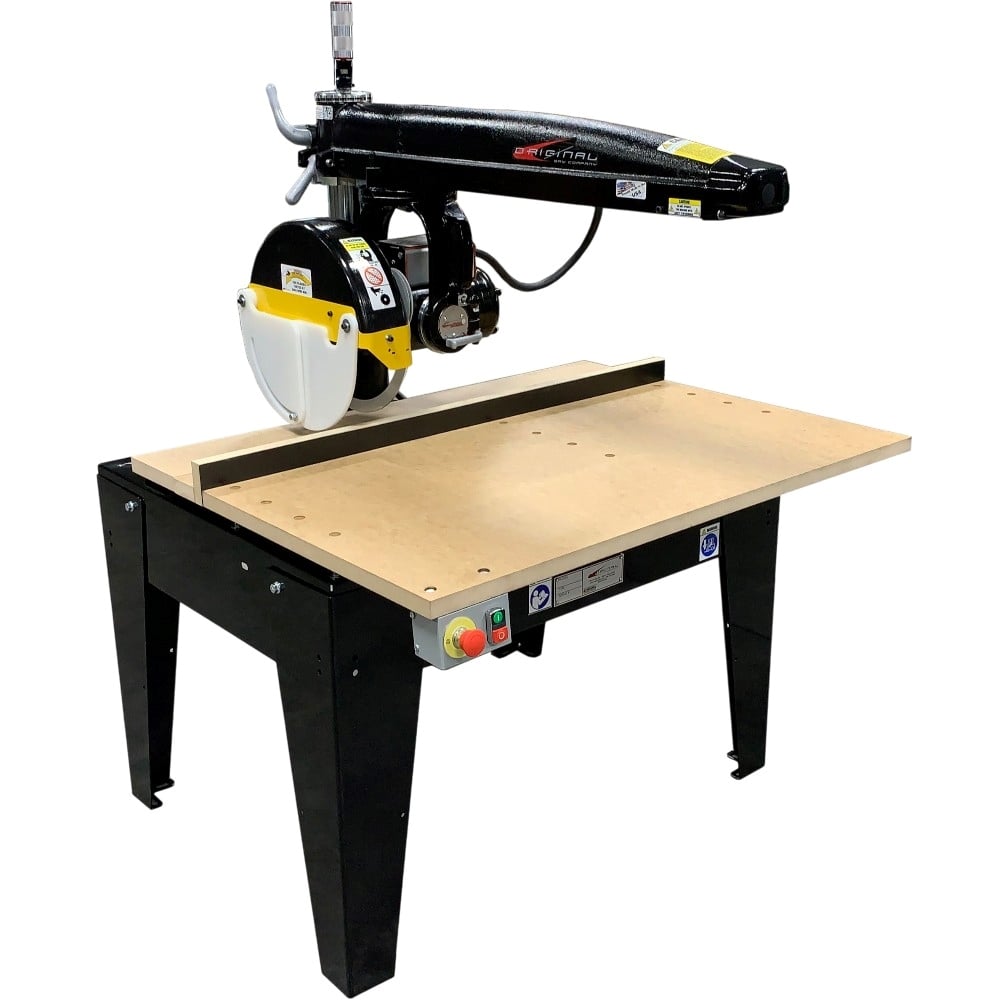

14″ Heavy Duty Radial Arm Saw

$8,163.91$8,429.85

  • 4 ⅛” depth of cut
  • Carriage return spring
  • Adjustable crosscut stop
  • E-Stop
  • Oversized MDF table top
  • Automatic blade braking system
  • Carriage rides on 8 wide-contact double row ball bearings, which provide smooth vibration-free travel
  • Arbor nut and precision-ground blade collars
  • Standard work table height 33″
  • HDPE (high-density polyethylene) lower blade guard that provides full coverage
  • Made in USA
Loading...

Description

The 14″ Heavy Duty Radial Arm Saw is a precision saw made for the rigors of everyday industrial use.

Original Saw Company has a history rooted in American-made products.  From its motor to its cast-iron arm, the Heavy Duty Series continues to be a workhorse in the woodworking industry. This radial arm saw is made from cast iron and heavy gauge, formed steel, and then powdered coated.

The 14” Heavy Duty Radial Arm Saw is able to perform a variety of cuts including:



The 14″ Heavy Duty Radial Arm Saws cut 4 1/8″ deep and can crosscut from to 16″ – 24″, depending on the model.

Recent Upgrades to the Heavy Duty Series Include:

  • High-density polyethylene lower guards provide full coverage.
  • An accessible start/stop button is located on the left front edge of the table.
  • E-Stop is a standard feature on all Radial Arm Saws. An E-Stop is a safety mechanism to shut off machinery in an emergency. This switch halts the operation of the Radial Arm Saw. It shuts off all potential hazards outside of the saw’s power enclosure.
  • The elevating crank and the yoke pull grip have re-engineered handle grips for ease of use.
  • New upper guard housing now doubles as a dado guard.
  • Multiple table options are available.
  • Swivel to rip with Radial Arm Saw with an optional rip kit.

Industrial Grade, American Made

Original Saw Company proudly manufactures quality, American-made products for the woodworking industry in Britt, Iowa. The company sources cast iron and heavy-gauge formed steel from the Midwest. These materials produce industrial-grade Radial Arm Saws weighing over 400-800 pounds.

Motors for radial arm saws are hand-wound at Original Saw Company’s facility, allowing customized voltages and providing excellent quality control.

As a result, we are proud to provide an American-made product and support American workers.

Not only are Original Saw Company products made in the USA, but they are also supported by USA-based customer service.  Because of this, we can make recommendations about what model is right for you, support, technical questions, and help with parts.

Additional information

Weight 575 lbs
Dimensions 52 × 50 × 48 in
Motor

3 HP 1 phase TEFC (totally enclosed fan cooled) motor, 3 HP 3 phase TEFC (totally enclosed fan cooled) motor

Product Length (Inches)

,

Product Width (Inches)

Product Height (Inches)

Cuttable Material

,

Max Crosscut

,

Max Depth Cut

Can do the following cuts

, , , , ,

Capable of Rip Cuts

Voltage Options

, , ,

Phases of Voltage Available

,

Pneumatic Clamping Ability?

Powered Feed Option?

Ordering & Shipping

Manufacturing of Radial Arm Saws happens after the customer orders. Machines are considered custom and are made voltage specific. If you are unsure about the power requirements of your location, please get in touch with an electrician.

Because some cutting applications are custom and specific, our team may contact you about your purchase. It is our priority to build a saw that fits our customers’ needs.

Radial Arm Saws are assembled and tested in our facility. After being test run, the saw is packaged and placed on a skid. The legs are attached to the skid. This makes setup and installation easy.

When the Radial Arm Saw is delivered, simply:

  • Lift the machine
  • Install the legs
  • Wire in the mag starter
  • Install the saw blade of your choice



These machines have provided affordable metal cutting in thousands of workshops and manufacturing companies throughout the world. Count on everyday repeatability and accuracy for years to come.

14″/16″ Radial Arm Saw Manual, Type 4 – Models 3531-01, 3536-01, 3531-03, 3536-03 and Models 3541, 3546

14” RADIAL ARM SAWS

TYPE 4

MODELS 3531-01, 3536-01, 3531-03, 3536-03

16” RADIAL ARM SAWS

TYPE 4

3541 & 3546

For s/n 20160603077 (07/2016) forward

Reviews

There are no reviews yet.

Be the first to review “14″ Heavy Duty Radial Arm Saw”

Your email address will not be published. Required fields are marked *

The adaptability of the Heavy Duty Series makes it well suited for use in the following areas:

  • Custom cabinet shops
  • School industrial arts programs
  • Lumber yards
  • Home centers
  • Packaging departments
  • Manufacturing plants
  • Serious woodshops

Original Saw Company offers three types of operation for Radial Arm Saws.



  • Manual Operation – Standard Radial Arm Saws are powered by the operator.  The operator pulls the handle and the blade moves forward radially to make the cut.  Manual operation is a standard feature on all Contractor and Heavy Duty Series Radial Arm Saws.
  • Hand Crank Operation – Hand Cranks are used instead of Manual Operation for better carriage control.  This operation is ideal for cutting large timbers, metal cutting applications, and heavy dado work.  Hand Crank Operation is available on 22.5” Super Duty Radial Arm Saws and all Metal Cutting Radial Arm Saws.
  • Semi-Automatic Operation – Add an electronic powered cross feed to a Radial Arm Saw for semi-automatic operation.  Push the button on the front side of the Radial Arm Saw and the blade will cut through the material and automatically return to the home position.  This operation is currently available on all Super Duty Series models and Metal Cutting Radial Arm Saws.



Our team has years of cutting experience.  Contact us for recommendations about clamping, feeding material, and complete automatic sawing packages.

There are several blade options for the Heavy Duty Radial Arm Saw. Choose a 14″ carbide tipped blade.



Blades are sold separately from the saw.

If you have the ability to use 3 phase power at your facility, choose this option when picking out a saw.  3 phase power creates a smoother motor start up. With no relays or capacitors inside the motor, there tends to be less maintenance and a longer service life.

Consult with an electrician if you are unsure of the power requirements of your location.

Saw Accessories

Saw Parts

Testimonials

Do You Need Test Cuts?

Are you unsure if this machine can cut your material?

Ask about sending in a material sample to Original Saw. We will cut your material on our shop saw and make a video. Afterwards, you can review the videoed test cuts and make informed decisions. Most importantly, we want you to feel comfortable with your solutions before your purchase.

Would you like to send us your material?

Email us at customerservice@originalsaw.com or call at (800) 733-4063 to start the process.
