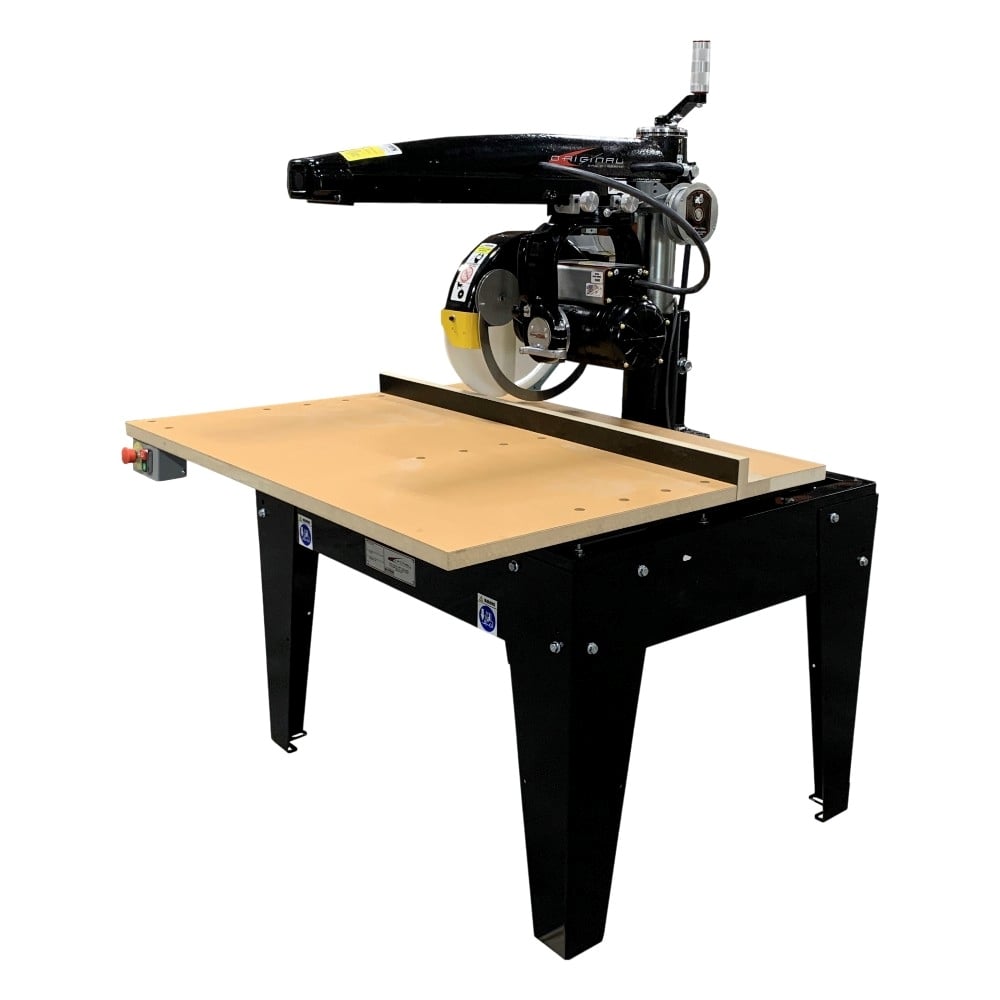

16″ Heavy Duty Radial Arm Saw

$8,291.92$8,690.84

  • 5″ depth of cut
  • Carriage return spring
  • Adjustable cross cut stop
  • E-Stop
  • Oversized MDF table top
  • Automatic blade braking system
  • Carriage rides on 8 wide-contact double row ball bearings, which provides smooth vibration-free travel
  • Arbor nut and precision ground blade collars
  • Standard work table height 33″
  • HDPE (high-density polyethylene) lower blade guard that provides full coverage
  • Made in USA

Frequently Bought Together

16" Heavy Duty Radial Arm Saw + 16" General Purpose Blade for Radial Arm Saws, Crosscut Power Saws and Beam Saws +
Price for all three: $8,685.15
Loading...

Description

16″ Radial Arm Saws provide superior performance in the wood cutting industry.

16″ Heavy Duty Series wood cutting saws feature 5 horsepower motors capable of handling industrial wood cutting environments.

The versatility of this series makes it well-suited for use in the following industries:

  • Custom cabinet shops
  • School tech departments
  • Lumberyards
  • Creating departments
  • Home centers
  • Packaging departments
  • Manufacturing plants
  • Serious woodshops



Original Saw Company Radial Arm Saws are capable of a wide variety of wood cutting operations including the following:

  • crosscutting
  • miter cutting
  • bevel cutting
  • compound miter cuts
  • dado operations
  • rip cuts (with added-on rip kit)



Most important, it is a smooth cutting saw with a rigid feel, capable of making accurate and repeated cuts.



These American-made saws are built in a Northern Iowa facility with American castings and motors.

Radial Arm Saws feature cast iron and aluminum construction. Also, these radial arm saws weigh a massive 500 pounds and offer vibration-free operation.

As a result of its versatility, Original Saw Company 16″ Heavy Duty Radial Arm Saws are much more than a radial arm saw. They are a stable cutting platform for many crosscutting and dado operations. Furthermore, outfit a Radial Arm Saw with Saw Extension Tables and Saw Measuring Systems for safe support and measurement of your material.

Recent Upgrades to the 16″ Heavy Duty Series Include the following:

  • High-density polyethylene lower guards provide full coverage.
  • The start/stop button relocation to the left front edge of the table improves accessibility.
  • The E-stop became a standard feature. An E-Stop is a safety mechanism to shut off machinery in an emergency. This switch halts the operation of the Radial Arm Saw. Most important, it shuts off all potential hazards outside of the saw’s power enclosure.
  • New elevating cranks and the yoke pull grip have redesigned handle grips for ease of use.
  • New upper guard housing now doubles as a dado guard.
  • Multiple table options are available.
  • Lastly, swivel to rip with an optional rip kit.

Additional information

Weight 550 lbs
Dimensions 52 × 50 × 48 in
Motor

5 HP 3 phase TEFC (totally enclosed fan cooled) motor

Product Length (Inches)

,

Product Width (Inches)

Product Height (Inches)

Cuttable Material

,

Max Crosscut

,

Max Depth Cut

Can do the following cuts

, , , , ,

Capable of Rip Cuts

Voltage Options

, , ,

Phases of Voltage Available

Pneumatic Clamping Ability?

Powered Feed Option?

Ordering & Shipping

Manufacturing of Radial Arm Saws happens after the customer orders. Machines are considered custom and are made voltage specific. If you are unsure about the power requirements of your location, please get in touch with an electrician.

Because some cutting applications are custom and specific, our team may contact you about your purchase. It is our priority to build a saw that fits our customers’ needs.

Radial Arm Saws are assembled and tested in our facility. After being test run, the saw is packaged and placed on a skid. The legs are attached to the skid. This makes setup and installation easy.

When the Radial Arm Saw is delivered, simply:

  • Lift the machine
  • Install the legs
  • Wire in the mag starter
  • Install the saw blade of your choice



These machines have provided affordable metal cutting in thousands of workshops and manufacturing companies throughout the world. Count on everyday repeatability and accuracy for years to come.

Reviews

There are no reviews yet.

Be the first to review “16″ Heavy Duty Radial Arm Saw”

Your email address will not be published. Required fields are marked *

Do you have a remodeling project or a passion for DIY? Visit your local big box store to have lumber cut to a custom length. Popular home stores use the 16″ Radial Arm Saw in their lumber departments to cut lumber for customers.

 Home Depot locations throughout the United States and Canada and many west coast Lowe’s stores are equipped with our Radial Arm Saw, Saw Roller Extension Tables, and Saw Measuring Systems.

Let our saws do the hard work for you!

Original Saw Company offers three types of operation for Radial Arm Saws.



  • Manual Operation – Standard Radial Arm Saws are powered by the operator.  The operator pulls the handle and the blade moves forward radially to make the cut.  Manual operation is a standard feature on all Contractor and Heavy Duty Series Radial Arm Saws.
  • Hand Crank Operation – Hand Cranks are used instead of Manual Operation for better carriage control.  This operation is ideal for cutting large timbers, metal cutting applications, and heavy dado work.  Hand Crank Operation is available on 22.5” Super Duty Radial Arm Saws and all Metal Cutting Radial Arm Saws.
  • Semi-Automatic Operation – Add an electronic powered cross feed to a Radial Arm Saw for semi-automatic operation.  Push the button on the front side of the Radial Arm Saw and the blade will cut through the material and automatically return to the home position.  This operation is currently available on all Super Duty Series models and Metal Cutting Radial Arm Saws.



Our team has years of cutting experience.  Contact us for recommendations about clamping, feeding material, and complete automatic sawing packages.

Table variety is the key when it comes to 16″ Radial Arm Saws.  Choose from the following:

  1. Oversized MDF Table with manual clamps – This is the standard table for Radial Arm Saws. The MDF table holds aluminum extruded t-slot tracks. The tracks contain the manual clamps for ease of cutting.
  2. ECS (Enclosed Cutting Surface) Table (for Model 3541 only) – For enhanced safety, choose an ECS Table. Original Saw Company manufactures the ECS Table from formed steel. It replaces the standard MDF table top and bolts to the saw frame. The ECS Table features the following:
    • A Laser blade path indicator lights the cut line.
    • HDPE side clamps secure the material and safely enclose the cutting area. Enclosing the cutting area also helps with saw dust collection.
    • The standard control panel includes a start/stop switch and an E-Stop switch. Upgrade the control panel and install an hour meter and a limiting access keypad.
    • 2 HDPE blade inserts surround the blade and provide clearance to limit blade contact with the steel table.
    • This table option includes an integrated 4″ dust collection hook-up.



Blades are sold separately from the saw.

Saw Accessories

Saw Parts

Testimonials

Do You Need Test Cuts?

Are you unsure if this machine can cut your material?

Ask about sending in a material sample to Original Saw. We will cut your material on our shop saw and make a video. Afterwards, you can review the videoed test cuts and make informed decisions. Most importantly, we want you to feel comfortable with your solutions before your purchase.

Would you like to send us your material?

Email us at customerservice@originalsaw.com or call at (800) 733-4063 to start the process.

Compatible Saw Accessories

Original Saw Company Heavy Duty Radial Arm Saws are much more than a radial arm saw. They are a stable cutting platform for many crosscutting and dado operations. Our saws can be outfitted with our Saw Extension Tables and Saw Measuring Systems for safe support and measurement of your material.
