20″ Semi-Automatic Crosscut Power Saw (3 phase with 18″ crosscut)

$19,102.81

  • 7.5 HP 3 phase TEFC (totally enclosed fan cooled) motor
  • 208, 230, 460 or 575 volt motor
  • 18โ€ crosscut
  • 6 โ…œ โ€ depth of cut
  • Manual Clamping
  • Integrated Dust Collection
  • Varied Frequency Drive (VFD) eliminates the need for a mechanical brake. Not only does the VFD extend the life of the motor, but it shortens the startup amps.
  • Laser Blade Path Line
  • Enclosed Lexan Polycarbonate Cutting Area
  • Powder Coated, Heavy Steel Frame
  • E-Stop
  • Start/Stop Station
  • Adjustable Crosscut length
  • Smooth Running Belt Drive System
  • Made in USA
Loading...

Description

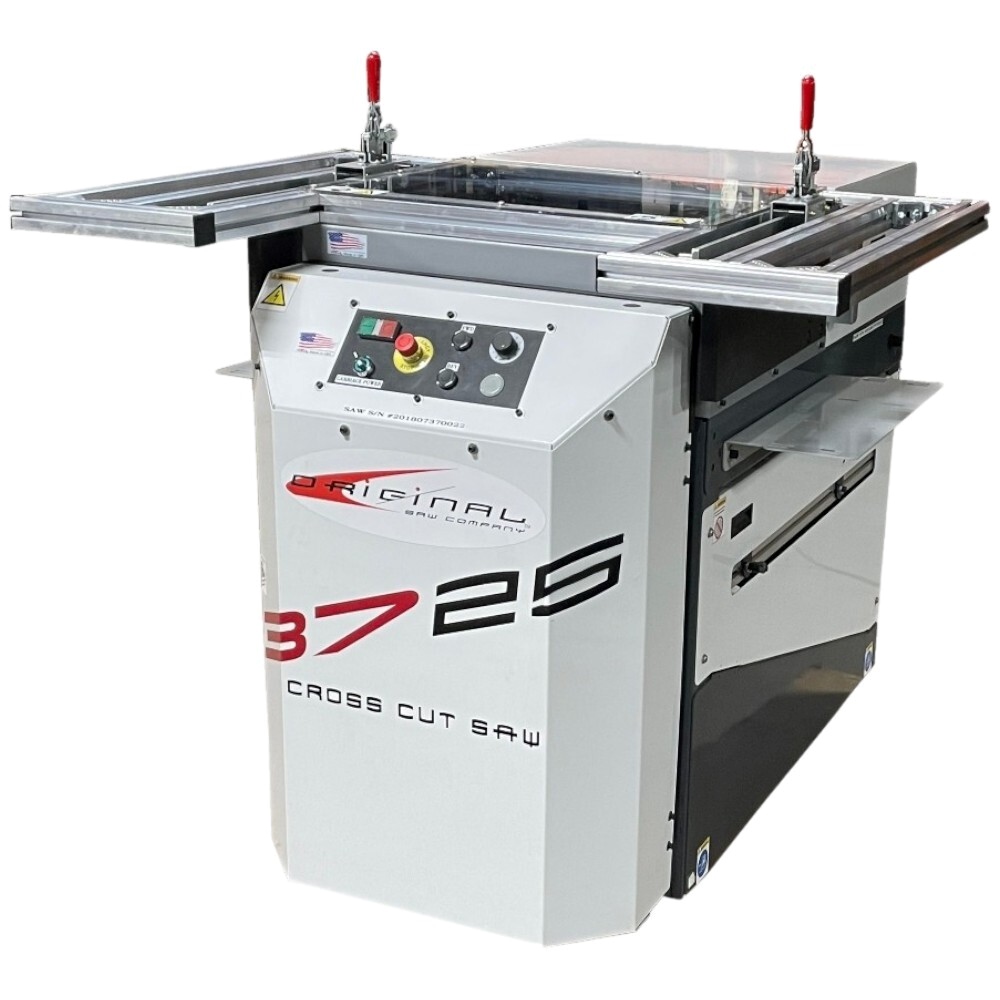

The model 3725.S is a semi-automatic saw, able to cut 6 โ…œ โ€ deep in a single pass and has an 18โ€ crosscut capability.

Weighing in at 800 pounds, this substantial saw is made for the rigors of everyday use.

Featuring a 7.5 horsepower 3 phase motor, the 20โ€ Semi-Automatic Crosscut Power Saw offers a new style of cutting. This saw undeniably brings together efficiency, precision, and safety. Featuring an enclosed cutting area, this saw specifically provides the cutting safety youโ€™ve been looking for. Make repeatable, straight cuts for years to come.

The Crosscut Power Saw is well suited for use in pallet shops, lumber yards, schools, big box stores, and many more industries.

Do you have the capability to run 3 phase power at your location? If so, this is the model you want. The 3 phase power creates a smoother motor start-up. With no relays or capacitors inside the motor, there tends to be less maintenance and longer service life.

Semi-Automatic Crosscut Power Saws are easy to operate. First, slide the material into the side of the saw and under the Lexan top. Secondly, clamp it into place using manual or pneumatic clamps. Next, merely push the button to activate the cycle. The carriage moves radially forward and cuts the material. In these models, the carriage stroke is controlled by the adjustable stops on the right side of the machine. Lastly, the carriage returns to its home position under the machineโ€™s cover.

We proudly manufacture woodworking machinery in our Northern Iowa facility. Original Saw Companyโ€™s Semi-Automatic Crosscut Power Saw is made with a powder-coated, heavy steel frame. With a TEFC (totally enclosed fan cooled) motor and internal automatic brake, this crosscut saw has the best cut quality in its class. This Crosscut Power Saw utilizes a Variable Frequency Drive (VFD) to control the arbor motor. Using the VFD increases the speed of the blade by over 8 seconds. Because of the VFD, this saw has a slower, smoother start-up.

Additional information

Weight 850 lbs
Dimensions 73 × 58 × 61 in
Motor

7.5 hp 3 phase TEFC (totally enclosed, fan cooled) motor

Product Length (Inches)

Product Width (Inches)

Product Height (Inches)

Cuttable Material

,

Max Crosscut

Max Depth Cut

Can do the following cuts

Capable of Rip Cuts

Voltage Options

, , ,

Phases of Voltage Available

Pneumatic Clamping Ability?

Powered Feed Option?

Ordering & Shipping

Manufacturing of Crosscut Power Saws happens after the customer orders. Machines are considered custom and are made voltage specific. If you are unsure about the power requirements of your location, please get in touch with an electrician.

Because some cutting applications are custom and specific, our team may contact you about your purchase. It is our priority to build a saw that fits our customers’ needs.

Crosscut Power Saws are fully assembled and tested in our facility. The saw is placed on a skid with a package built around it. This makes setup and installation easy.

When the saw is delivered, simply:

  1. Remove Crosscut Power Saw from the skid
  2. Wire included cord into the power box
  3. Install blade of choice



These machines have provided innovative wood cutting in thousands of manufacturing companies throughout the world. Count on everyday repeatability and accuracy for years to come.

Reviews

There are no reviews yet.

Be the first to review “20″ Semi-Automatic Crosscut Power Saw (3 phase with 18″ crosscut)”

Your email address will not be published. Required fields are marked *

Most importantly, safety features.

  • The Lexan Polycarbonate enclosed cutting area covers the top of the saw and makes a totally enclosed cutting space. Unlike other saws, the operator is unable to get a hand near the blade. Cutting safety is markedly increased due to the enclosed cutting area.
  • While the saw is in operation, the machine pulls the sawdust back into the machine and the dust port removes the dust on the backside of the frame.
  • The Semi-Automatic Crosscut Power Saw features a push-button on the front of the machine. The controls are easily accessible and housed on the front panel of the machine.
  • Simply clamp the material either manually or pneumatically and push the button. The blade travels forward under the enclosed Lexan top to cut the material.
  • The adjustable stops on the right side of the machine control the carriage stroke. Because of the stops, the blade doesnโ€™t travel farther than needed. Consequently, this time-saving feature can increase your production and efficiency.
  • A Crosscut Power Saw can easily cut through wood and wood products, composite material, and plastic.

    • Material can be cut one piece at a time.
    • Materials can also be stacked to cut multiple pieces at once. Cutting several pieces at once can undoubtedly improve your production rate.

Saw Accessories

Saw Parts

Testimonials

Check Out Our Product Video

Do You Need Test Cuts?

Are you unsure if this machine can cut your material?

Ask about sending in a material sample to Original Saw. We will cut your material on our shop saw and make a video. Afterwards, you can review the videoed test cuts and make informed decisions. Most importantly, we want you to feel comfortable with your solutions before your purchase.

Would you like to send us your material?

Email us at customerservice@originalsaw.com or call at (800) 733-4063 to start the process.

Compatible Saw Accessories

Saw Flat Extension Tables

It is highly recommended to use Saw Flat Extension Tables on the infeed and outfeed sides when using a Crosscut Power Saw. There is no exposed table on the saw because of the enclosed cutting surface. The Flat Tables will provide stability and safety when running material through the Crosscut Power Saw.

Saw Measuring Systems

When choosing Saw Measuring Systems for the Crosscut Power Saw, the Fixed Foot or Flip Foot options can be used.

It is recommended to use a Flip Foot when cutting material that is smaller than 4โ€™, do not use the 4โ€™ Fixed Foot Measuring System. (Saw Measuring System with Fixed Foot โ€“ 4โ€ฒ long, left side mount or Saw Measuring System with Fixed Foot โ€“ 4โ€ฒ long, right side mount).ย When the material is under 4โ€™, it is difficult to retrieve it from the enclosed cutting area.ย ย
